Big Picture

This interactive image helps you to get the big picture of the invoicing prozess and the role of the various Sumex1 atl modules.
Hover over an area of the image to display more information. Click on a active section to zoom in and click on to zoom out and return one hierarchy level.

Overview > Provider

During the invoice generation process, the xmlManager may use a corresponding validator
automatically to validate the invoice with the given tariff rule set.

The invoice:
A standard compliant XML exchange document (e.g. generalInvoiceRequest450),
generated by the xmlManager, is returned to the main software for further processing.

Note: There are several versions of the XML-Standards maintained by "Forum Datenaustausch".

generalInvoiceRequest450
generalInvoiceRequest440
generalInvoiceRequest430
...

You can choose the target version, but in general you should go with the latest.

During the invoice generation process, the xmlManager may
use a corresponding validator automatically to validate the invoice
with the given tariff rule set.

Sumex1 component to generate standard compliant
data exchange formats.
(e.g. invoices and reminder with generalInvoiceRequest)

The main softwares invoice generation layer.

click to zoom in

The main software can use the validator not only for
a live validation of your treatments services records but
also to browse/search for services in the various tariffs.

For invoice generation, the services from the treatment
database are passed to the xmlManager.

Sumex1 component to search and validate tariff records from various swiss healthcare tariffs (e.g. Tarmed).

The main softwares service and treatments management layer
including a treatments service records database.
This is the place where service records for treatments are stored.

click to zoom in

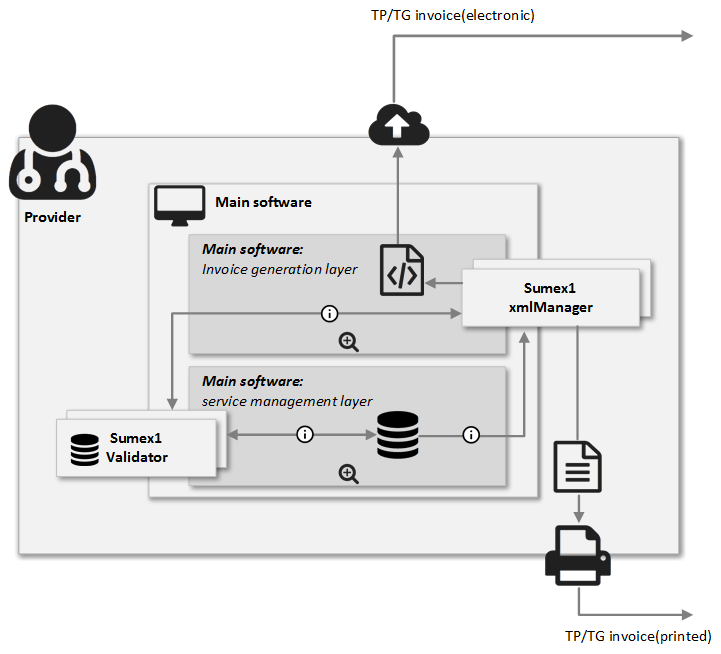

A software product using sumex1 components to generate
invoices and browse and validate services from various swiss healthcare tariffs.

The invoice:
The xmlManager is capable of producing a standard compliant invoice
which can be automatically send to a printer.

Proprietary transmission software gateway for the
electronic transport of invoices (e.g. Mediport).
