Sumex1.net/generalFormResponse: Overview

Overview

The generalFormResponseManager is an ATL COM module which provides methods to load and analyze XML infosets of type generalFormResponse_450. These infosets are responses to a previously sent form requests where the topmost object reference defines target request.

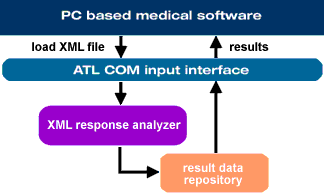

Architectural blueprint

With the IGeneralFormResponseManager interface all standards-compliant generalFormResponse_450 XML infosets can be loaded by the LoadXML method. These responses are analyzed and the results are supplied on demand through the returned IGeneralFormResponse interface. Furthermore, the form response can be printed out via the report engine.

Therefore, generalFormResponseManager is the logical counterpart of the generalFormRequestManager.

Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.

Get started with
Important Documents

Keyfacts at a glance

Version 450
Last update:	Friday, 28 October 2022 - 09:04:44
Module version/date:	4.50.005	28 Oct 2022
Interface version/date:	4.50	2 Sep 2016
Covering:	XML schema 4.50 from 2. Sep. 2016

Version 430
Last update:	Friday, 6 September 2019 - 11:07:46
Module version/date:	4.30.003	21 Jan 2019
Interface version/date:	4.30	7 Sep 2011
Covering:	XML schema 4.30 from 7. Sep.2011

API browser

The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.

Date	Time	API version
27.08.22	10:37:55	V4.50: View API browser
27.08.22	10:37:55	V4.50: Download API browser .CHM file

06.09.19	11:07:46	V4.30: View API browser
06.09.19	11:07:46	V4.30: Download API browser .CHM file

Download area for generalFormResponse related files

Parameters for a silent install / uninstall process

Installation directory:
    INSTALLDIR=full_path_to_install_dir

Silent install:
    generalFormResponseInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" "

Silent uninstall:
    generalFormResponseInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" "

Date

Version

Description

28.10.22

4.50.005

generalFormResponseManager with the new restserver generalFormResponseManager450Server450 - cf. history
Download generalFormResponseManager installer (14.4 MB)

show older builds ...

Date	Version	Description
21.01.19	4.30.003	The usage of this version is deprecated - use the newer version! generalFormResponseManager installer with cumulative updates - cf. history Download generalFormResponseManager installer ( 17.2 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment Actions for developers: none Actions for end users: install
show older builds ...
06.07.16	4.30.002	generalFormResponseManager installer with code improvements.
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list A cleanup task for temporary files has been added. In fact, all files temporary generated are deleted once the main interface is shut down. However, there are situations where files are still locked at shutdown and thus are not deletable at that moment. As a remedy, the cleanup task is started periodically to check for files older than 5 days that are deleted eventually. The detection of signed and/or encrypted XML files was improved such that the security library is loaded and initialized on demand. This measure ensures a better performance while stabilizing security library usage Actions for developers: none Actions for end users: install
17.01.12	4.30.001	generalFormResponseManager installer - initial version .
		Revision history Initial version V4.50 Please read the document "Changes from V4.30 to V4.50..." for an overview about the major changes Actions for developers: implement Actions for end users: install
