Overview

The GeneralNotificationManager is an ATL COM module which provides methods to generate an email like structured message exchange between two partners. The produced XML infoset is transported electronically to the recipient and optionally can be signed and/or encrypted.

The generalNotification systems differs from other Sumex1 processes in that the notification system is symmetric. Thus there is no distinction between request and response.

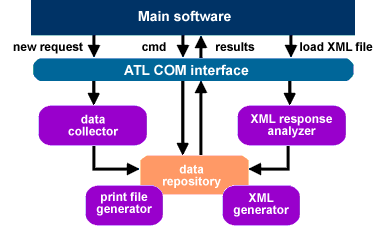

Architectural blueprint

Either a new notification is produced from scratch by using the IGeneralNotificationRequest interface or a received notification is loaded into the module by the LoadXML method and a reply to that message is generated thereafter. The all data can be visualized using the Print method.

Eventually the data is transformed into a standards-compliant generalNotification XML infoset that is sent to the recipient over a intermediate.

Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.

Get started with
Important Documents

Keyfacts at a glance

Version 451
Last update:	Thursday, 27 October 2022 - 16:21:12
Module version/date:	4.51.004	27 Oct 2022
Interface version/date:	4.51	28 Sep 2018
Covering:	XML schema 4.51 from 28. Sep. 2018

Version 450
Last update:	Tuesday, 20 July 2021 - 12:18:03
Module version/date:	4.50.004	20 Jul 2021
Interface version/date:	4.50	2 Sep 2016
Covering:	XML schema 4.50 from 2. Sep. 2016

Version 440
Last update:	Monday, 21 January 2019 - 14:49:57
Module version/date:	4.40.003	21 Jan 2019
Interface version/date:	4.40	15 Nov 2013
Covering:	XML schema 4.40 from 13. Sep. 2013

API browser

The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.

Date	Time	API version
12.09.22	10:32:56	V4.51: View API browser
12.09.22	10:32:56	V4.51: Download API browser .CHM file

20.07.21	12:15:31	V4.50: View API browser
20.07.21	12:15:31	V4.50: Download API browser .CHM file

16.10.17	12:02:06	V4.40: View API browser
16.10.17	12:02:06	V4.40: Download API browser .CHM file

Download area for generalNotification related files

Declaration of communication channels

All generalNotificationManager COM modules have the following communication channels:

outbound to medSRS.ch - port 80|443
The communication service is triggered inside the method IGeneralNotificationRequest::SetTransport by using the queryRHS() patch as described in the API documentation.

Information about the Restful Webservice is available at medSRS.ch

Parameters for a silent install / uninstall process

Installation directory:
    INSTALLDIR=full_path_to_install_dir

Silent install:
    generalNotificationInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" "

Silent uninstall:
    generalNotificationInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" "

Date

Version

Description

27.10.22

4.51.004

generalNotificationManager with the new restserver generalNotificationManagerServer451 - cf. history
Download generalNotificationManager installer (13.9 MB)

show older builds ...

Date	Version	Description
20.07.21	4.50.004	generalNotificationManager installer with cumulative updates - cf. history Download generalNotificationManager installer (17.6 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: The decoding of Base64-encoded attachments has been enhanced to successfully process the standard, 72-character chunks formatting as well as a non-standard, single-string formatting. This measure is important for the correct processing of non-Sumex1 generated and potentially non-standard compliant XML files. Improved handling for predefined routing chains of intermediates ('@'-separated GLN list) in the IGeneralNotificationRequest::SetTransport and the IGeneralNotificationResponse::GetTransport methods. Please study the documentation on how to input such an intermediate chain. Bug fix in the mirroring process of the IGeneralNotificationRequest::SetReply method. Bug fix occuring in rare cases when an interface error is signalled but the error message is returned empty in GetAbortInfo() Actions for developers: none Actions for end users: install
show older builds ...
06.04.20	4.50.003	generalNotificationManager with a new feature for improving connectivity - cf. history
		Revision history The electronic reachability of a recipient for a certain version of generalNotification is kind of a chicken and egg problem. To solve this connectivity problem, the webservice medSRS (medical Standard Routing Service) has been created. By using the RESTful webservice method queryRHS one can find out, how and whether a specific recipient can be reached electronically. Please refer to the website medSRS.ch for getting an introduction to the topic or detailed information about the functionality of the webservice. Instead of inputting the argument bstrToEan literal, the string queryRHS(glnProvider,glnRecipient) is supplied virtually as a webservice call in the IGeneralNotificationRequest::SetTransport method. The such given data is actually translated into the RESTful call of the same name. Please study the following URLs as well 04.04.2020 - API Patch: query/check the reachability of a recipient bstrToEAN 04.04.2020 - Documentation: IGeneralNotificationRequest::SetTransport It is strongly recommended that this new feature is use/implemented by the main software! Actions for developers: implement Actions for end users: install
21.01.19	4.50.002	generalNotificationManager installer with cumulative updates - cf. history
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment Actions for developers: none Actions for end users: install
09.06.17	4.50.001	generalNotificationManager installer - initial version
		Revision history Initial version V4.50 Please read the document "Changes from V4.40 to V4.50..." for an overview about the major changes Actions for developers: implement Actions for end users: install

Date	Version	Description
21.01.19	4.40.003	generalNotificationManager installer with cumulative updates - cf. history Download generalNotificationManager installer ( 17.4 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment Actions for developers: none Actions for end users: install
show older builds ...
06.07.16	4.40.002	generalNotificationManager installer with code improvements.
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list form update system has been improved towards higher economy of the number and length of the usable time slices. automatic schedule of the form update process was lowered to 3 days bug fixes regarding the re-establishing of the semantic structure under low data input situations Please do update to this build! Actions for developers: none Actions for end users: install
14.11.13	4.40.001	Installer of the generalNotificationManager - initial version.
		Revision history Initial V4.4 version Actions for developers: implement Actions for end users: install
