Sumex1.net/generalCreditRequest: Overview

Overview

The generalCreditRequestManager450 is an ATL COM module which provides methods to generate credit requests and cost estimates for all roles and places.

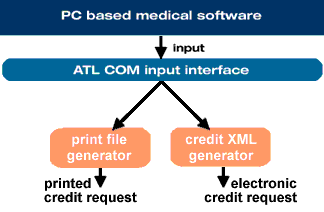

Architectural blueprint

The input will be supplied through a programmatic interface. Thereafter the data is transformed into a standards-compliant XML credit request stream that is sent to the intermediate. Alternatively, one can force the module to send the input to a print engine producing the appropriate credit request on paper. As a side effect of the encapsulation the developers of the main software do not need to care, format nor implement the XML credit standard.

Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.

Get started with
Important Documents

Keyfacts at a glance

Version 450
Last update:	Thursday, 28 November 2024 - 15:01:17
Module version/date:	4.50.003	27 Oct 2022
Interface version/date:	4.50	1 Nov 2019
Covering:	XML schema 4.50 from 1. Nov. 2019

Version 430
Last update:	Monday, 21 January 2019 - 14:45:02
Module version/date:	4.30.006	21 Jan 2019
Interface version/date:	4.30	3 Feb 2011
Covering:	XML schema 4.30 from 3. Feb. 2011

API browser

The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.

Date	Time	API version
12.09.22	10:26:43	V4.50: View API browser
12.09.22	10:26:43	V4.50: Download API browser .CHM file

Date	Time	API version
12.09.17	15:21:16	V4.30: View API browser
12.09.17	15:21:16	V4.30: Download API browser .CHM file

Download area for generalCreditRequest related files

Parameters for a silent install / uninstall process

Installation directory:
    INSTALLDIR=full_path_to_install_dir

Silent install:
    generalCreditRequestInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" "

Silent uninstall:
    generalCreditRequestInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" "

Date

Version

Description

28.11.24

4.50.003

GeneralCreditRequestManager with an updated RESTserver generalCreditRequestManagerServer450 - cf. history
Download GeneralCreditRequestManager installer (15.0 MB)

show older builds ...

Date	Version	Description
21.01.19	4.30.006	The usage of this version is deprecated - use a newer version! GeneralCreditRequestManager installer with cumulative updates - cf. history Download GeneralCreditRequestManager installer ( 17.5 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment Actions for developers: none Actions for end users: install
show older builds ...
09.04.18	4.30.005	GeneralCreditRequestManager installer with an attachment related bug fix - cf. history
		Revision history The processing of a XML file is done in two passes due to memory and performance considerations. Any Base64 attachments are extracted and saved separately, beforehand the basis XML data are loaded into the DOM. When splitting up these Base64 files a bug occurring with very small attachments was fixed. The service parameters quantity, base_amount and scale_factor are written in full precision into the XML file. Actions for developers: none Actions for end users: install
22.09.17	4.30.004	GeneralCreditRequestManager installer with a printout improvement - cf. history
		Revision history Internal code enhancements have been applied as given by the following list: The printout has been enhanced by an additional line with the total amount of all supplied services. Actions for developers: none Actions for end users: install
06.07.16	4.30.003	generalCreditRequestManager installer with code improvements - cf. history
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list A cleanup task for temporary files has been added. In fact, all files temporary generated are deleted once the main interface is shut down. However, there are situations where files are still locked at shutdown and thus are not deletable at that moment. As a remedy, the cleanup task is started periodically to check for files older than 5 days that are deleted eventually. Actions for developers: none Actions for end users: install
30.03.16	4.30.002	generalCreditRequestManager installer with code improvements - cf. history
		Revision history Internal code enhancements have been applied as given by the following list The code for getting a proper working directory was improved by taking into account more than one possible location (AppDATA and TempPath) The methods PrintSetup and PrintAdjust act upon a supplied print template. In the case of an undefined or wrong print template name a correct default template is set and used internally. Actions for developers: none Actions for end users: install
03.08.11	4.30.001	generalCreditRequestManager installer - initial version
		Revision history Initial V4.3 version Actions for developers: implement Actions for end users: install
