the status of a prior queried reference object
Overview
The StatusResponseManager is an ATL COM module that allows to load and analyze a XML infoset of type statusResponse_430. Such an infoset supplies the status of a set of object references that have been sent to an insurance.

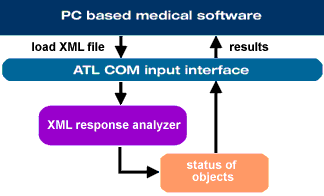

Architectural blueprint
A status response XML infoset is loaded into the module and thereafter analyzed via the IStatusResponseManager interface. Upon successful loading the IStatusResponse interface is returned with which all data especially the object references enhanced with a processing status can be extracted.
The statusResponse module is the logical counterpart of the statusRequest module.
Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.
Keyfacts at a glance
| Version 430 | ||
|---|---|---|
| Last update: | Monday, 16 October 2017 - 10:06:06 | |
| Module version/date: | 4.30.001 | 31 Aug 2016 |
| Interface version/date: | 4.30 | 26 Aug 2010 |
| Covering: | XML schema 4.30 from 26. Aug. 2010 | |
API browser
The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.
| Date | Time | API version |
|---|---|---|
| 16.10.17 | 10:06:06 | V4.30: View API browser |
| 16.10.17 | 10:06:06 | V4.30: Download API browser .CHM file |
Download area for statusResponse related files
| Date | Version | Description | |
|---|---|---|---|
| 16.03.11 | 4.30.001 | installer of the statusResponseManager - initial version. Download V4.30 installer |
|
|
Revision history
Initial V4.3 version Actions for developers: implement Actions for end users: install |
|||
| show older builds ... | |||
| Parameters for a silent install / uninstall | |
| Installation directory: INSTALLDIR=full_path_to_install_dir Silent install: statusResponseInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" " Silent uninstall: statusResponseInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" " |
